Downloads include 30-day fully functional free trial & help documentation.
After download refer to PipeFitPro Help documentation (in the maintenance section) for feature comparison list and install information.

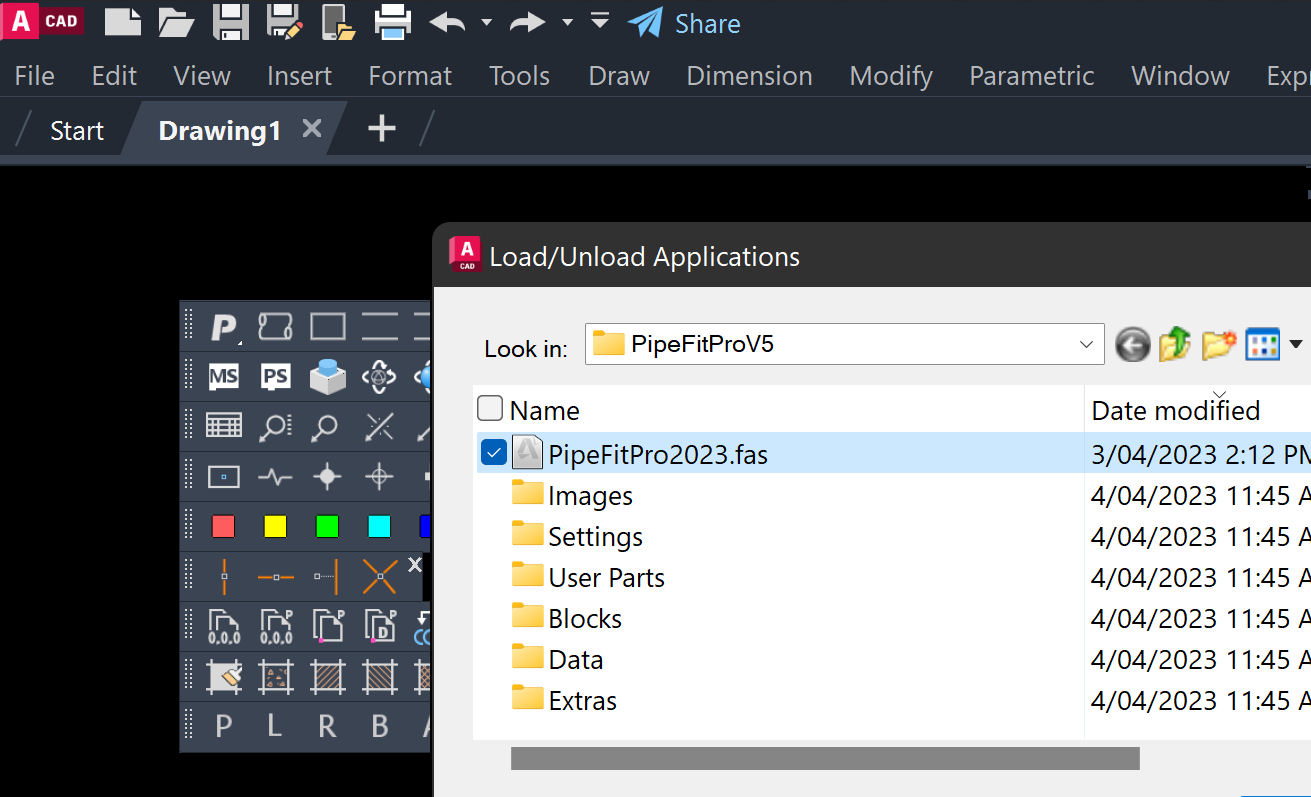

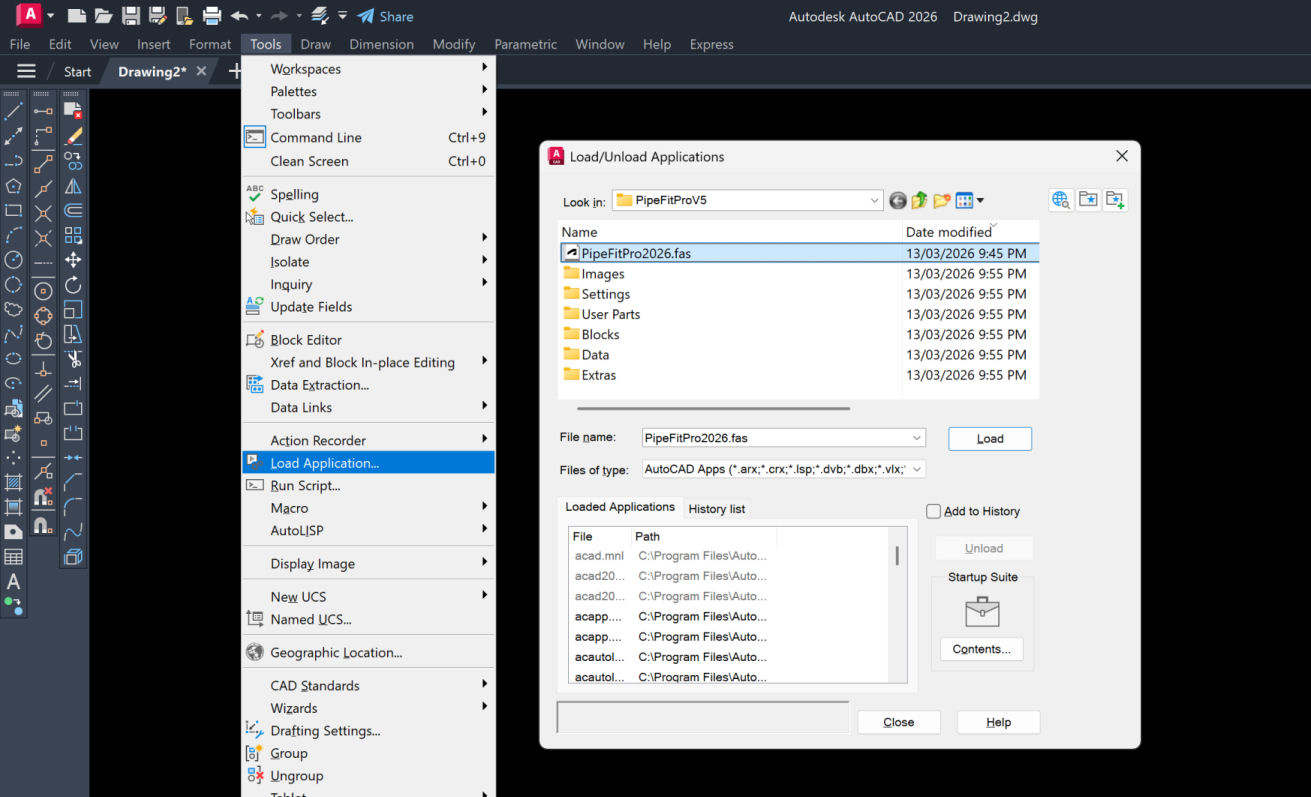

PipeFitPro installs to the C:\PipeFitProV5 folder.
Installs can be backed up or transferred to other computers, and upgrades will re-use ALL data (custom pipe sizes, block etc). New versions won't adversley affect the running of an existing install.

PipeFitPro software offers professional quality piping tools, fittings, flanges and various design tools as an add-on for AutoCAD® 2023. Stay in control of your designs with one application that will help you improve accuracy, maximize productivity & ultimately help you achieve design goals.

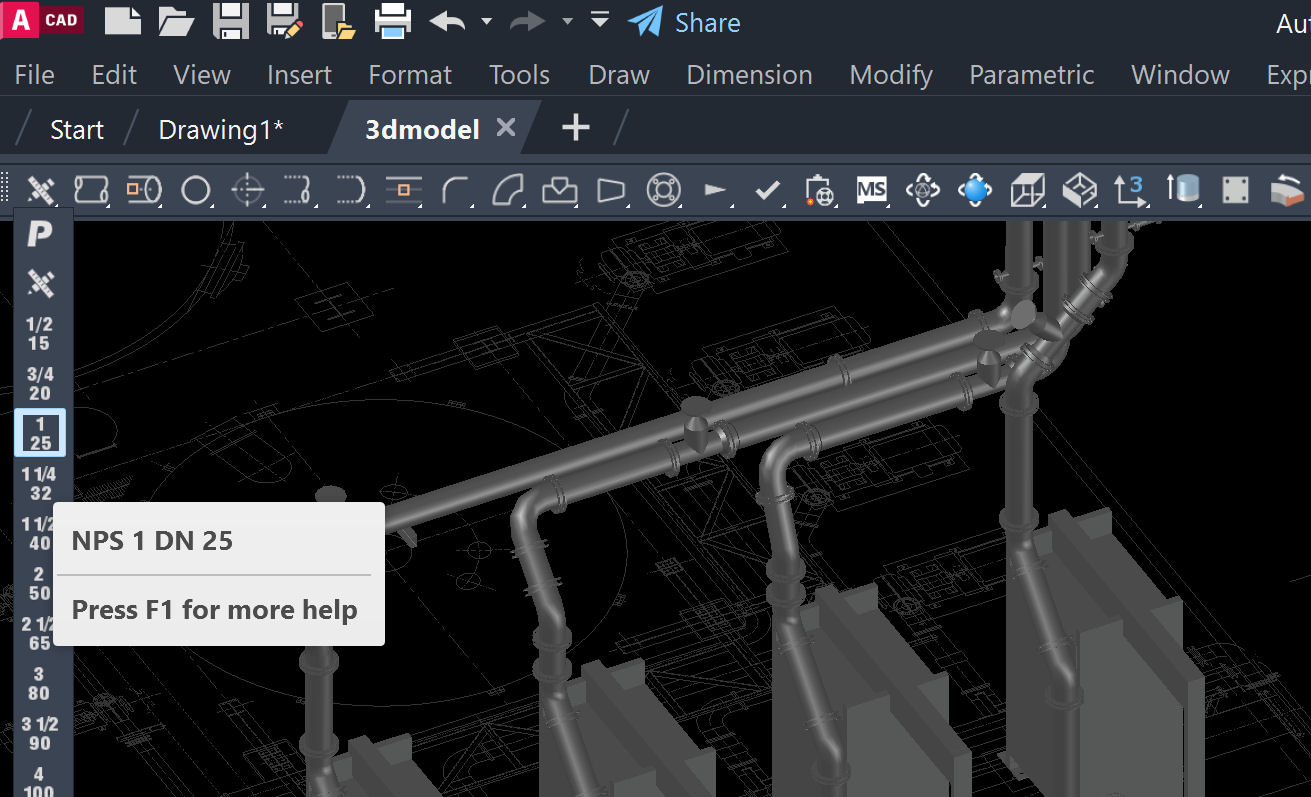

100% Compatible 2D & 3D Piping Tools.

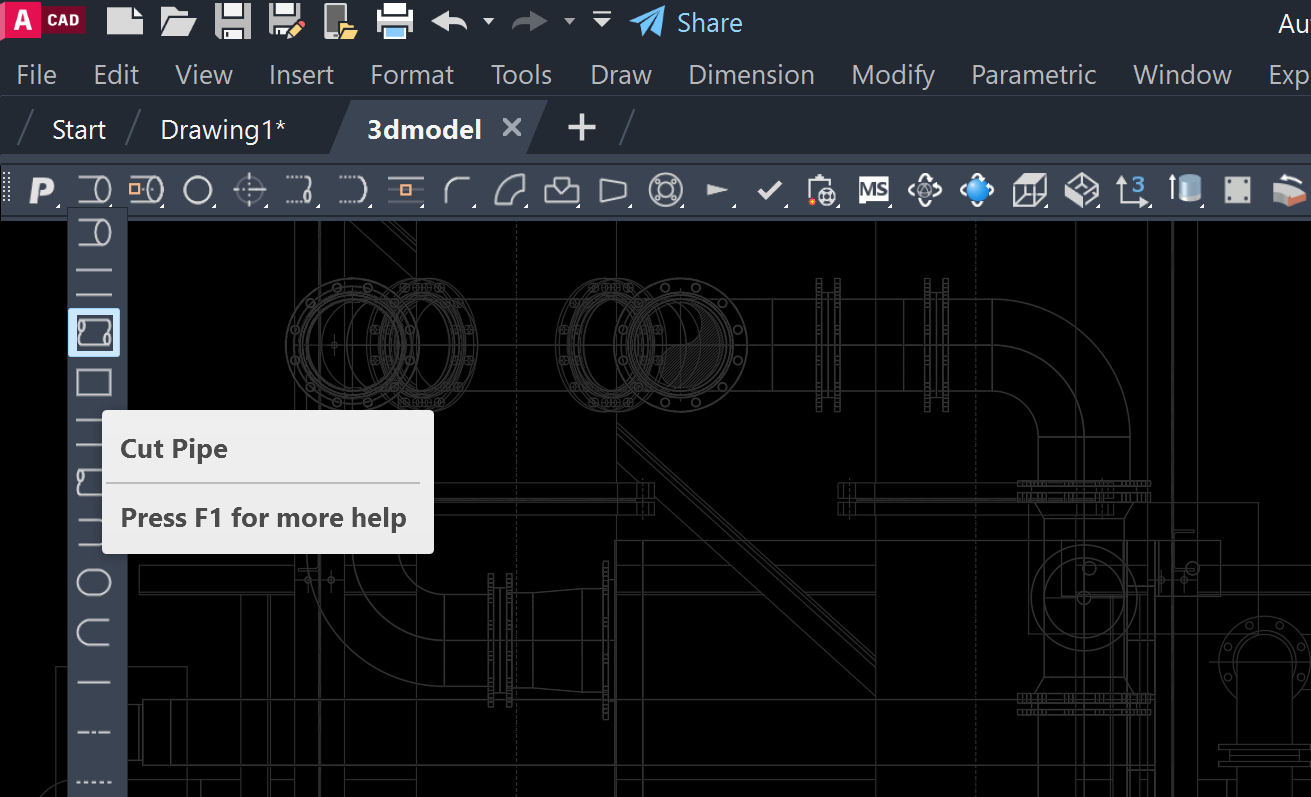

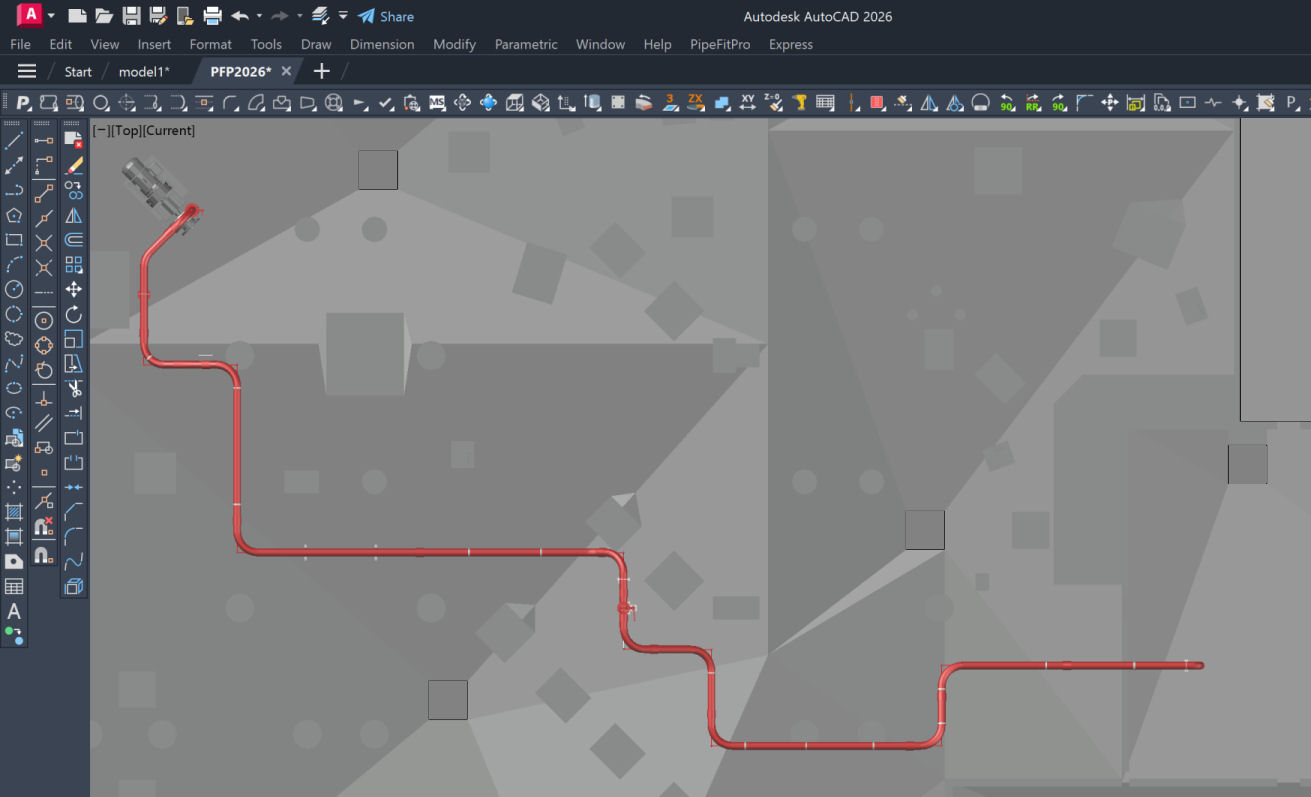

Easily draw pipes in full size including butt weld fittings such as tees, elbows, reducers, and flanges, in both 2D or 3D. PipeFitPro offers reliable commands in all environments, that work intuitively and make light work of repetitive tasks, while ensuring typing errors are reduced. Increase accuracy with a system that's proven to deliver successful design projects.

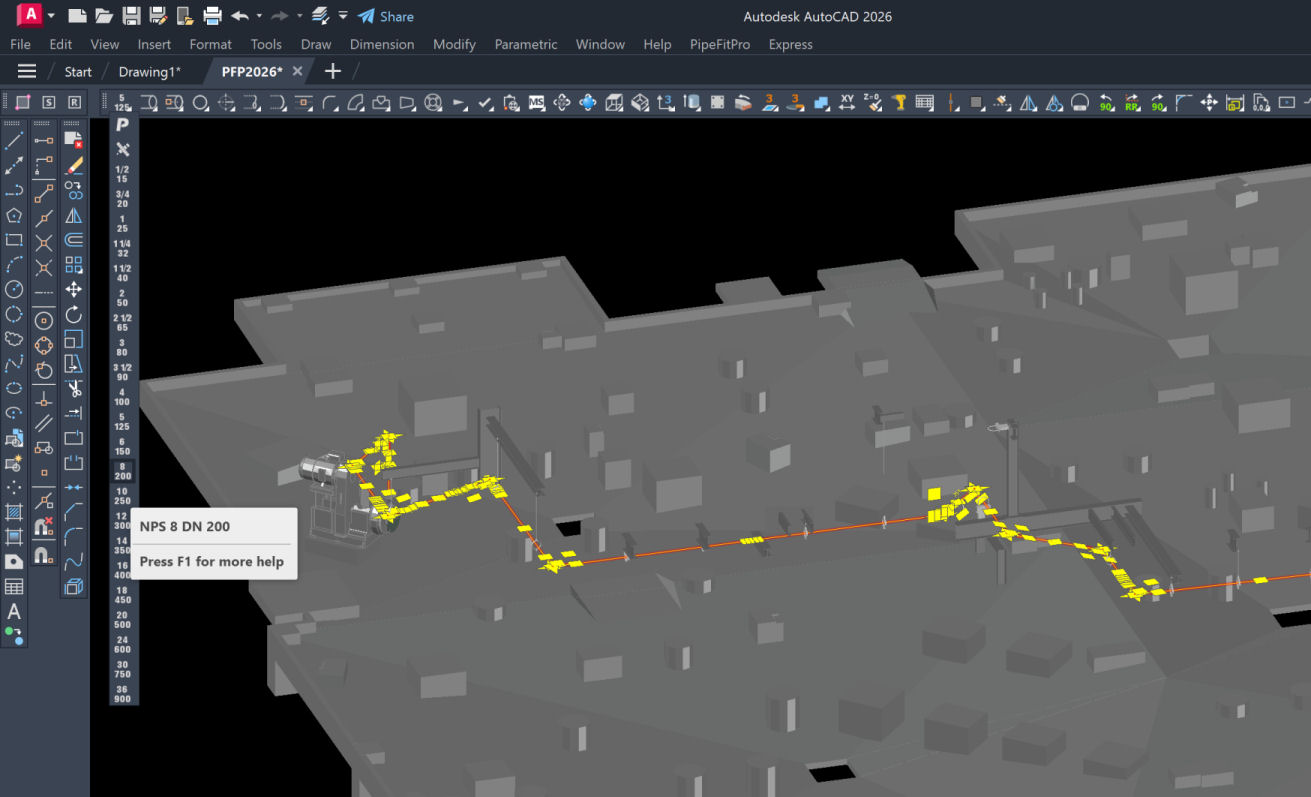

Use your 2D drawings and knowledge in 3D.
Confidently attack complex designs using your AutoCAD experience, and PipeFitPro's extensive piping tools and utilities - without the need for 3D specific software. Whether you incorporate geometry from existing 2D drawings or model in 3D first, you will save time and avoid potential data loss associated with importing/exporting designs to 3D specific programs. Use PipeFitPro for all piping layouts, detailing and 3D modeling.

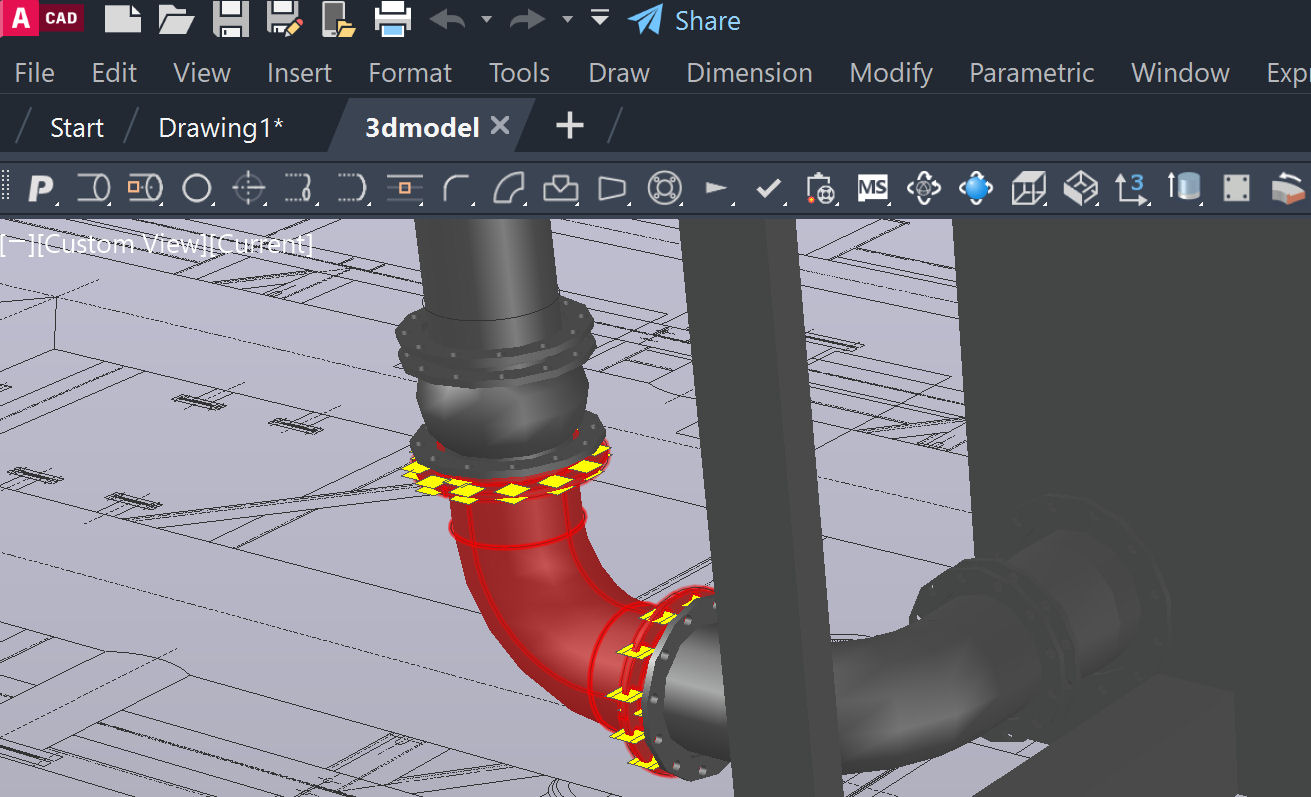

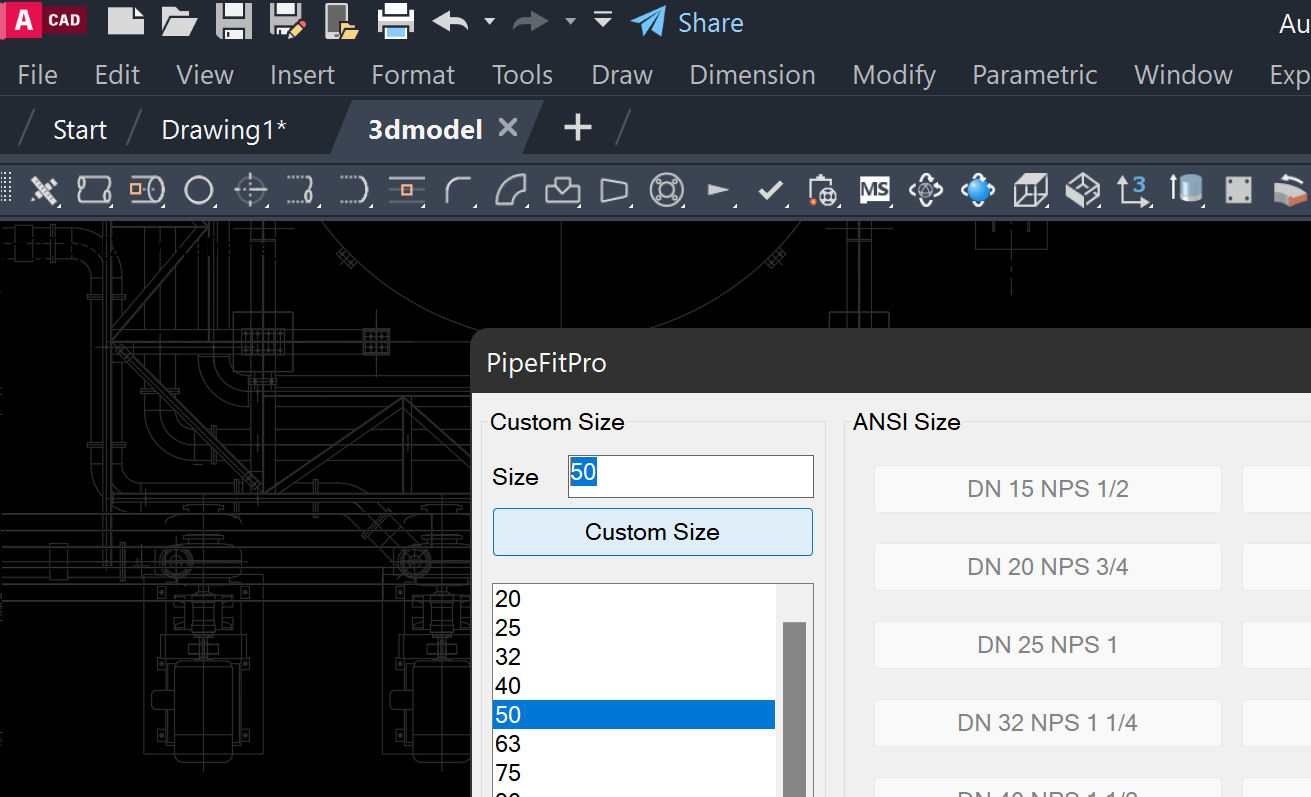

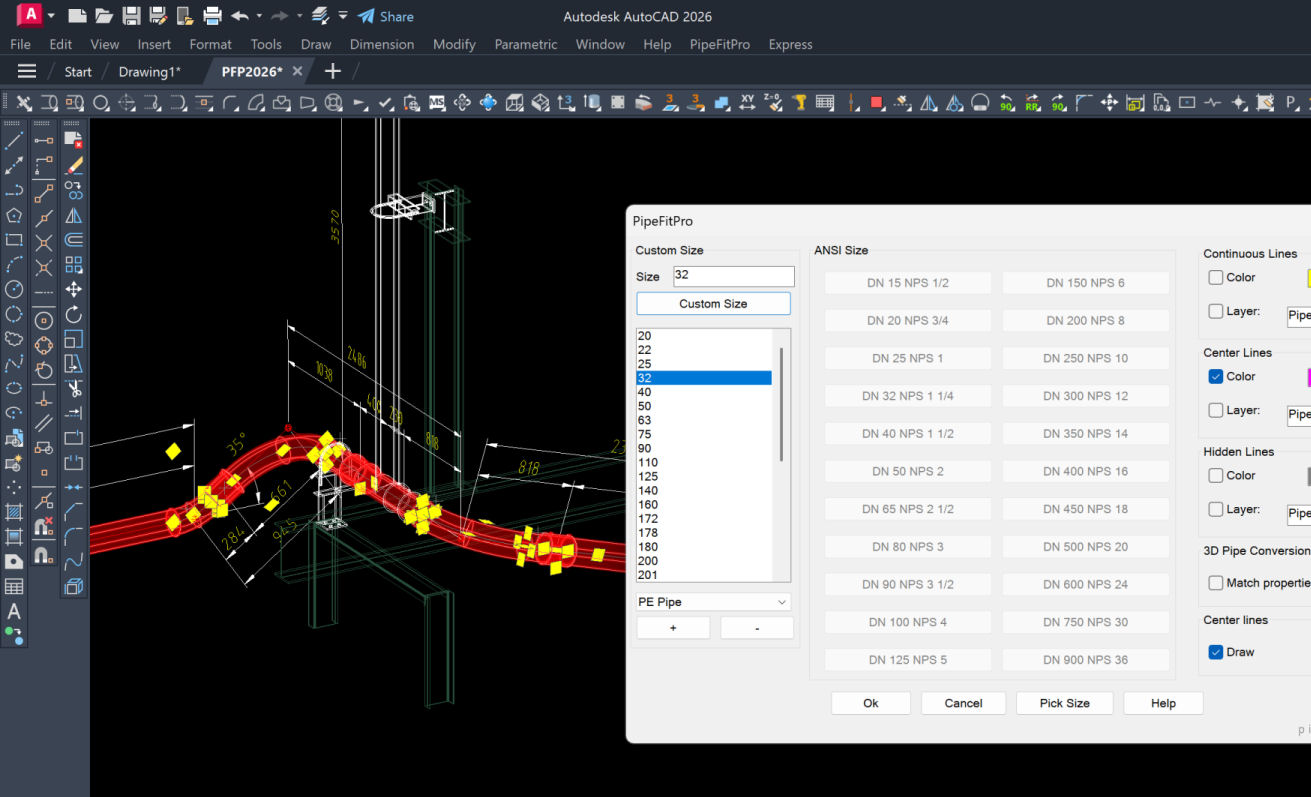

Customize pipes, fittings and flanges for specific standards.

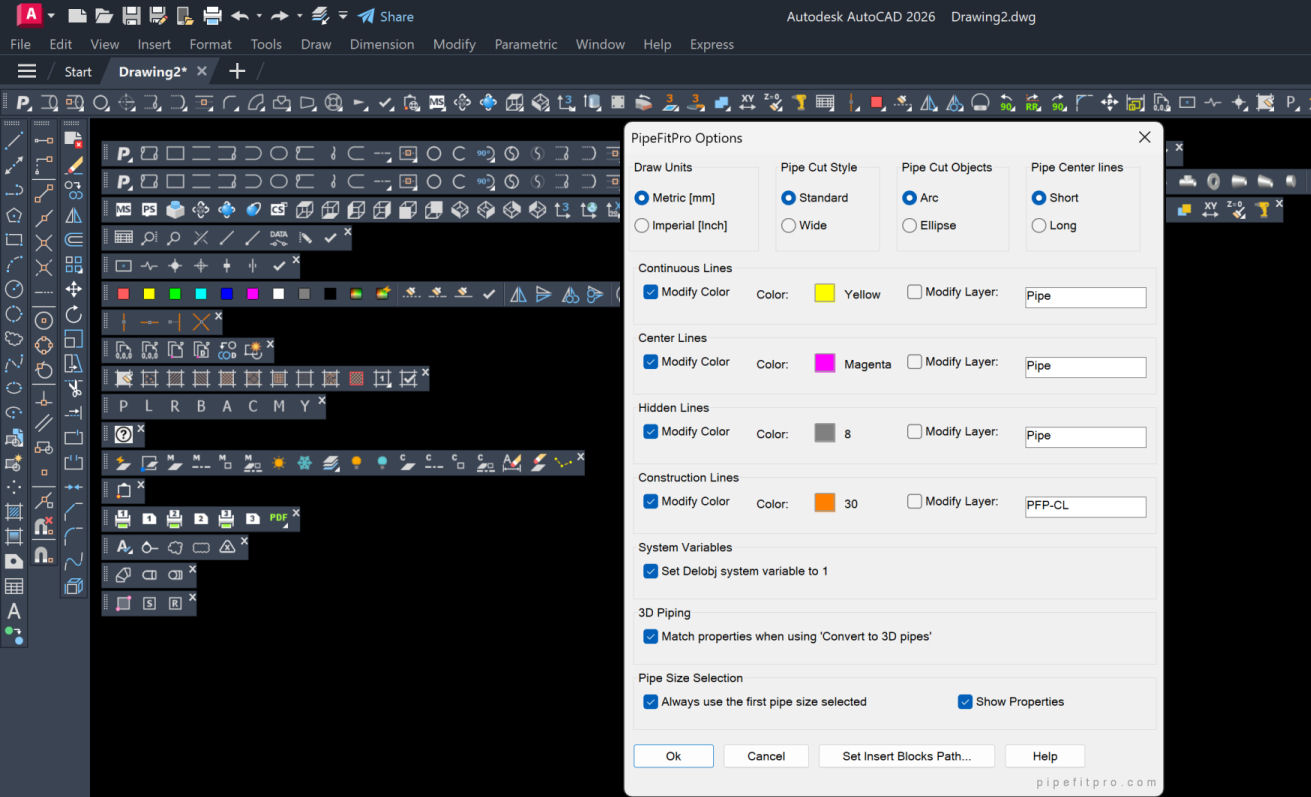

PipeFitPro allows you to pre-set dimensions for customized plate flanges, pipes and fittings. With all pre-sets available for all 2D views & 3D modeling, our customers are able to see immediate advantages when designing to specific standards.

Build equipment libraries and incorporate existing details.

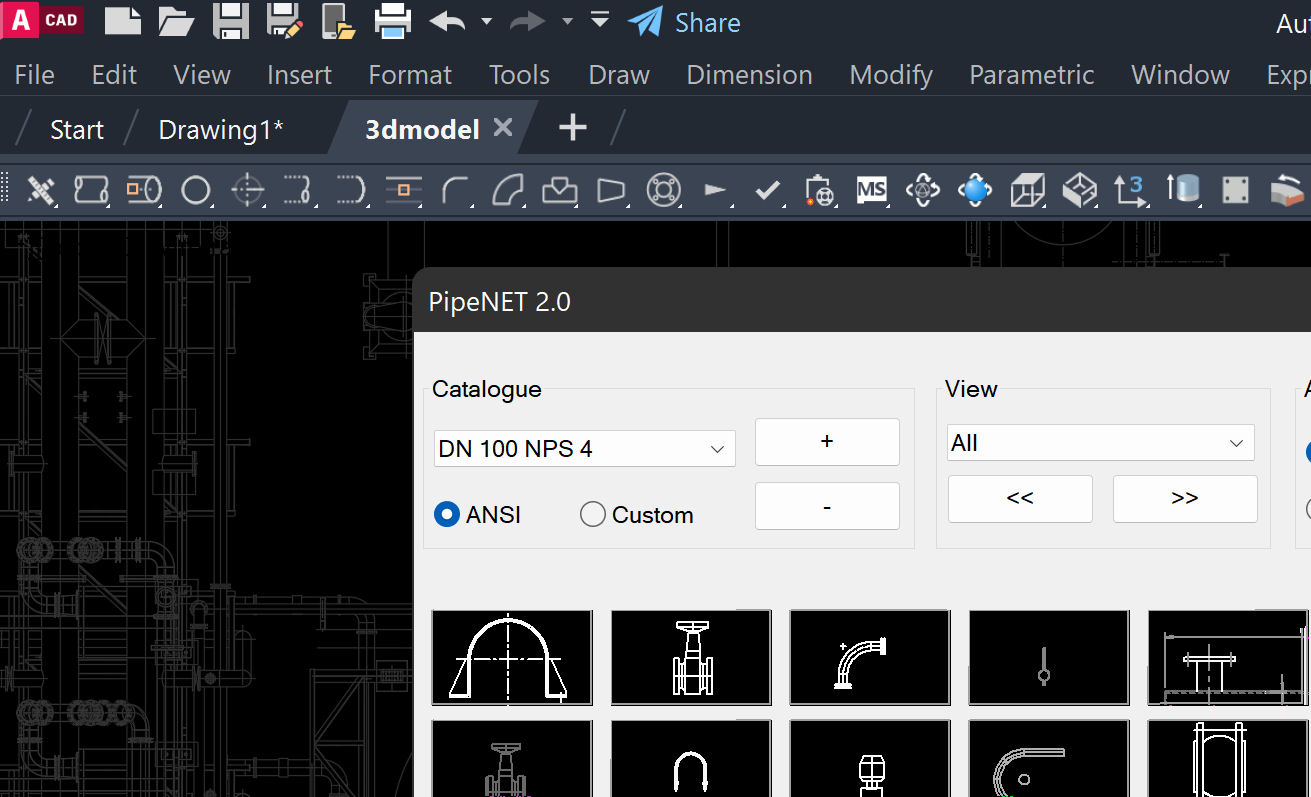

Add custom content to PipeFitPro with PipeNET, a user parts system that is quick and easy to use. Also included is PipeFitPro is the 'Insert Blocks' command which allows you to file and quickly access larger equipment libraries on either local or networked drives.

Design more efficiently with professional quality design tools.

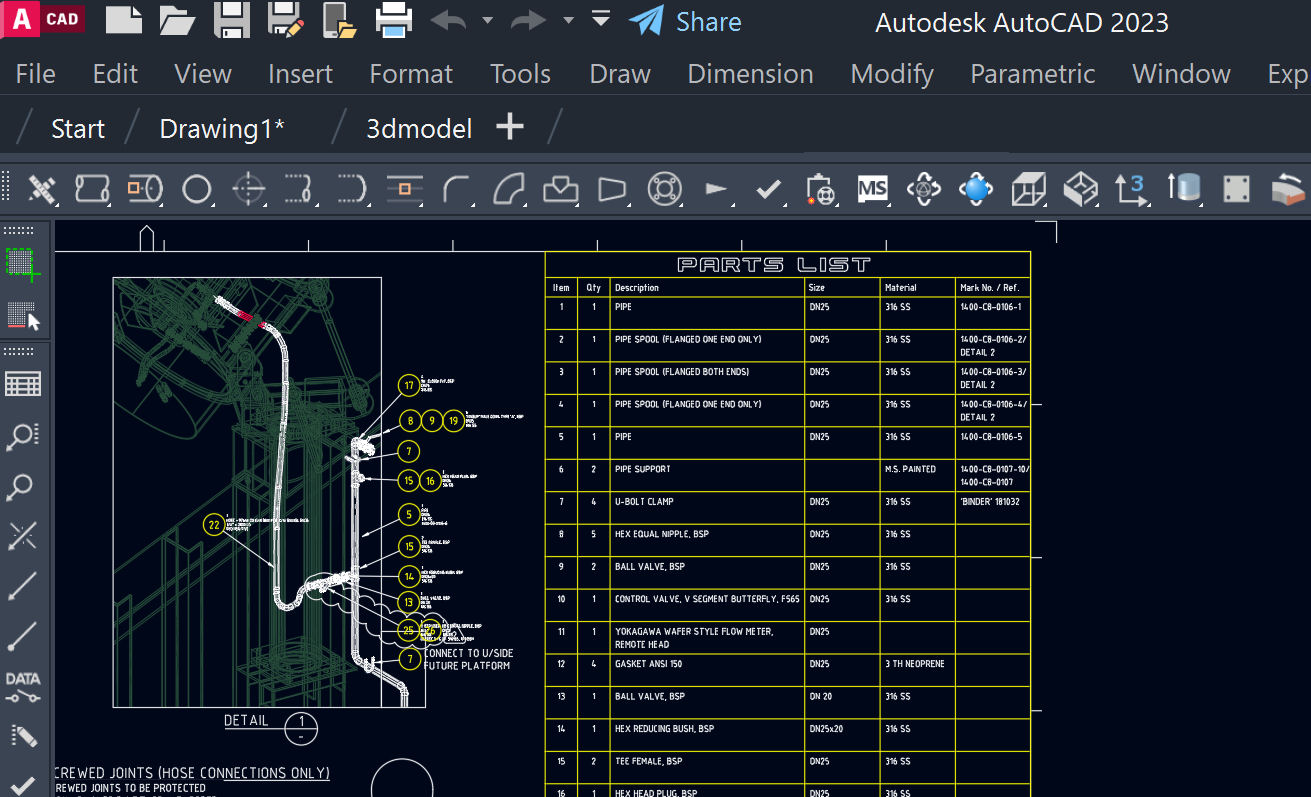

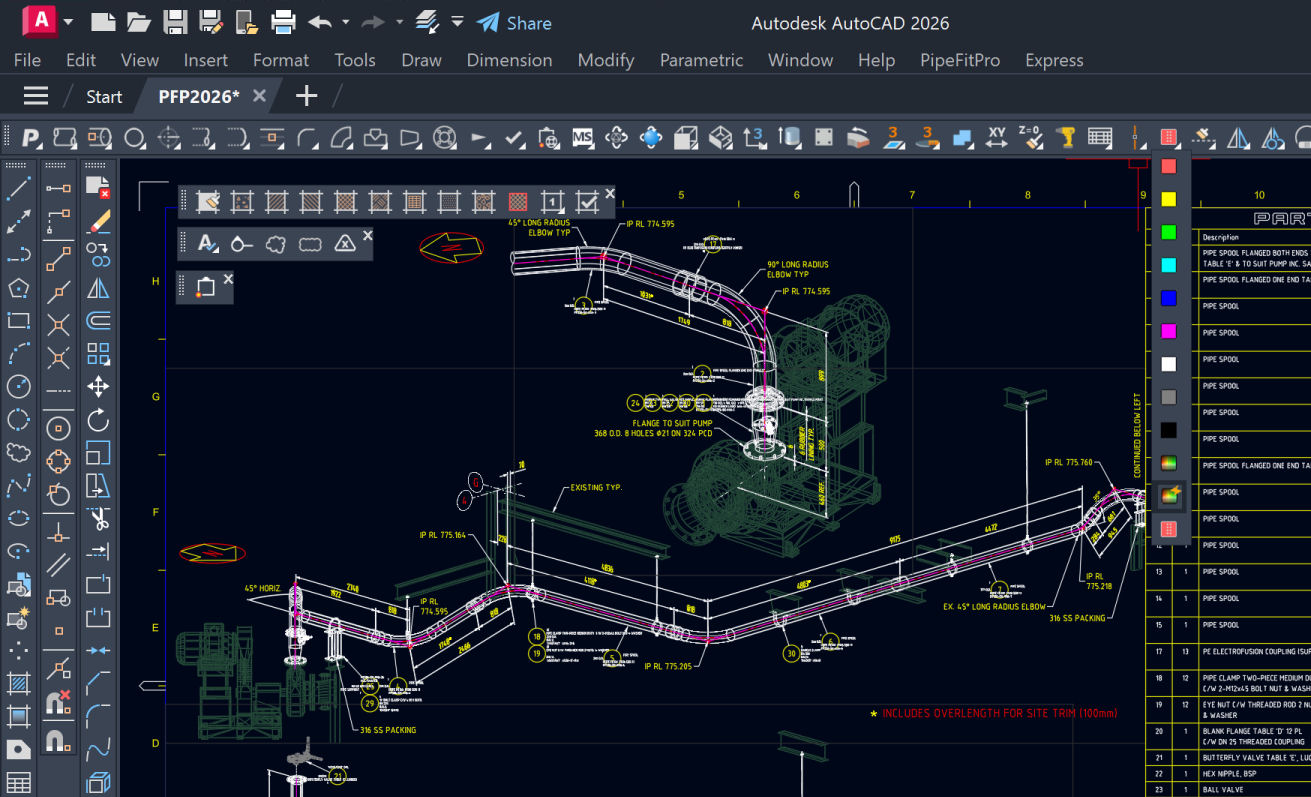

PipeFitPro provides many productivity tools developed to address tasks associated with the presentation of engineering drawings: one click printing, enhanced construction lines, automatic parts lists (BOM), annotation, block management, hatching, bolt holes, 3D modeling tools, and general editing shortcuts. All commands use a clear toolbar interface and allow designers to discover new features with ease.

Export, review and visualize with confidence.

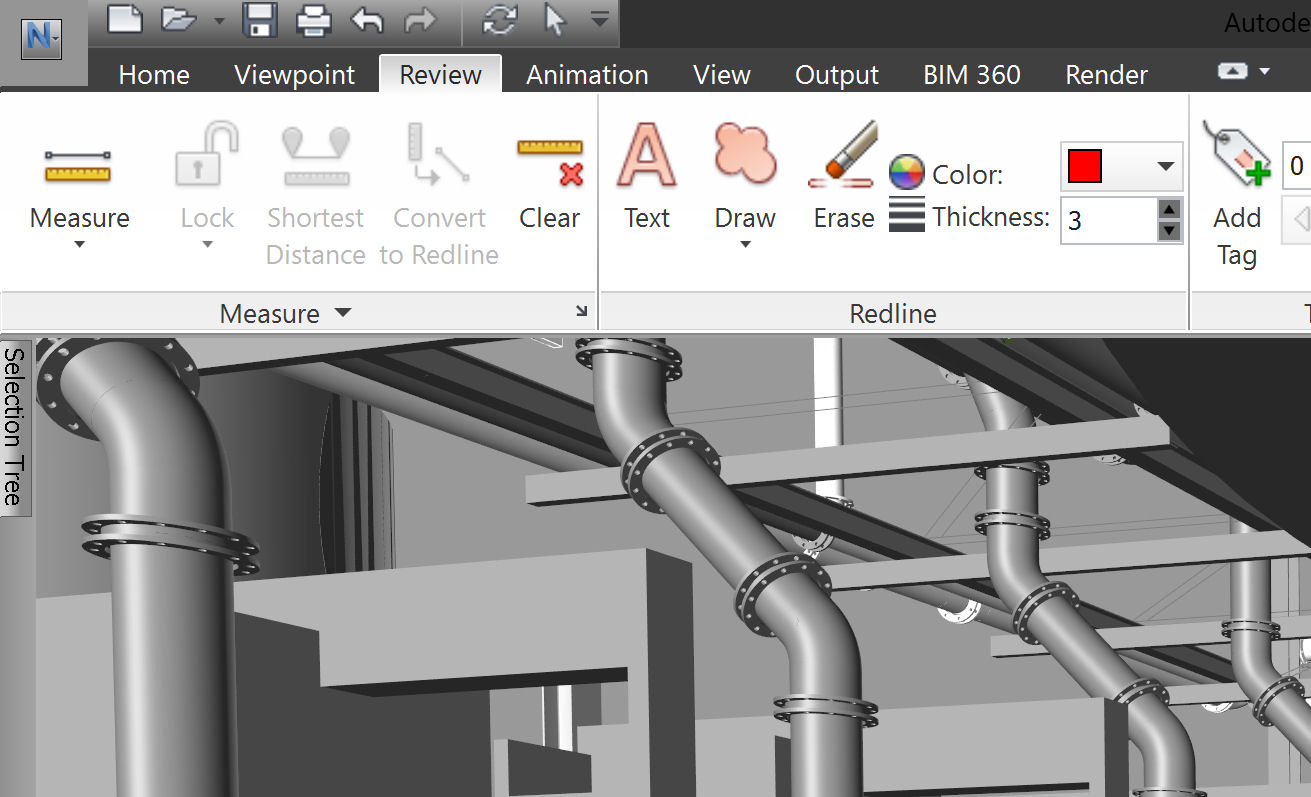

Drawings made with PipeFitPro are directly compatible with normal export functions, older versions of AutoCAD, PDF software, and other Autodesk® & Navisworks® family of products for visualization, design review, and clash detection.PipeFitPro uses standard AutoCAD objects for commands.

Buying PipeFitPro provides a perpetual license to allow activated software use indefinitely on a PC and back-up PC or laptop. We offer free upgrades/activation to the latest version and priority technical support for 12 months from purchase.

Buy PipeFitPro
Includes 12 month free upgrades & Priority Support

Buy PipeFitPro 2024 Basic Edition (for AutoCAD 2024) US$375
Buy PipeFitPro 2024 Full Edition (for AutoCAD 2024) US$595
Buy PipeFitPro 2023 Basic Edition (for AutoCAD 2023) US$375
Buy PipeFitPro 2023 Full Edition (for AutoCAD 2023) US$595

Purchases are processed with PayPal (including major Credit Cards). After payment is made an email to you (from PayPal) will confirm order within a few minutes. Our Support Desk then emails download & activation instructions within one business day. Email us for purchase orders, bank transfer, cheque payment & US W-8 forms. All applicable local sales tax(e's) to be paid by customer (automatically added by PayPal).

Existing customers can upgrade to the latest version with a 12 months Maintenance purcahse.

Basic Edition Maintenance US$125
Full Edition Maintenance US$195

PipeFitPro Testimonials

"Just letting you no how much I enjoy using the program" Frank, Canada.

"We purchased 2d&3d pipe fit pro and love the way it works..." Sandi, USA.

"Love the ease of use of your software and its 3D presentation..." Juan, USA.

"Gentlemen, I would like to commend you on creating an excellent program. The program has been a great help..." Susan, USA.

"...Thanks for a simple yet incredibly fast to operate & hassle free, 2D piping package that works exactly the way I think and saves me hours on otherwise tedious and repetitive line placing, block insertions, trimming, cutting & deleting etc.. - well done!!..." Gordon, South Africa.

"Thanks for the quick response...I use this software a lot now. Its quite slick and easy to use...Thankyou!" Paul, Canada.
